DIO-1

Remote Isolated Digital I/O

2 x 500mA @ 24v DC Solid State Relay outputs, fused

2 x 12-24v DC isolated digital inputs, IEC61131-2

Ethernet TCP/IP control, with simple ASCII protocol

LED indicators for power, I/O state, general status, and network

Simple web browser configuration

Recessed reset button to restore factory defaults

12-24v DC supply, also available on input and output connectors

Removable terminal block connectors for wiring

Compact clip-on DIN rail module

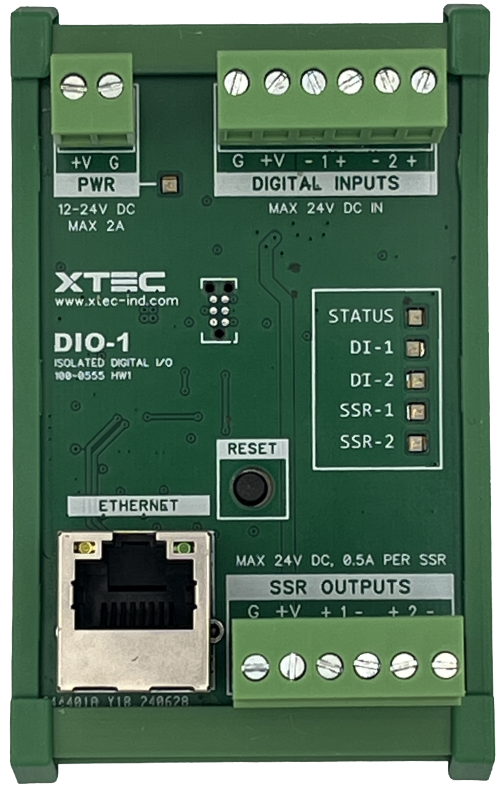

The XTEC DIO-1 is an industrial grade remote digital I/O module. It features two isolated 12-24v DC digital inputs, and two isolated Solid State Relay (SSR) outputs rated up to 500mA at 24v DC each. Control and configuration is via Ethernet.

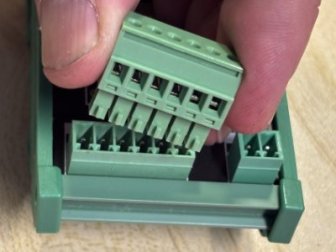

Plug-in screw terminal connectors, to save time and prevent wiring errors if changing a module. Clamping terminals accept up to 16AWG conductors.

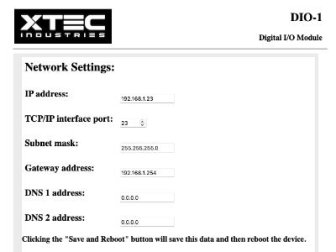

Simple web browser based configuration.



Configuration can be reset to factory defaults by pressing and holding the Reset button.

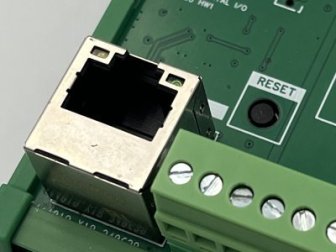

Standard RJ45 connector for Ethernet control, with Link and Activity LED's.



Network is 10/100BASE-T.

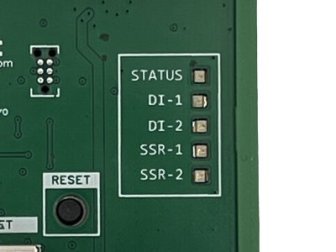

LED's for general health, and digital input and Solid State Relay output states.
