MP-2

High Definition Media Player

Media playback up to 1920 x 1080 at 60fps

HDMI audio/video and 3.5mm line audio outputs

Ethernet and digital in control

Two digital outputs, to control lights or relays

Media and config file stored on SD card, for easy backup

FIle transfer via SD card, USB drive or FTP

9-24v DC supply

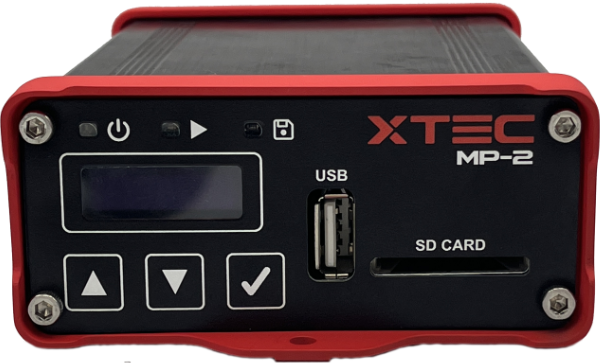

The XTEC MP-2 is a compact High Definition media player, intended for video and / or audio playback in professional installations. It is housed in a tough extruded aluminium enclosure, and includes surface mount brackets.



Video with embedded audio is output via a full size HDMI connector, and a 3.5mm stereo jack is also available for audio.  Media and device configuration are stored on a removable full-size SD card, making backup and restore very easy.



Media can be installed  either by copying files onto the SD card, or via a USB A drive and the front panel UI. Media can also be transferred over Ethernet via FTP, allowing for possible remote content management.



Remote control options include Ethernet via a simple TCP/IP protocol, and two digital inputs that can be configured to operate in various modes. The MP-2 can also be configured for auto-play on boot. There are two 1A "NPN" type digital outputs that can be configured in various modes, for controlling devices such as indicator lamps or relays. All settings can be configured via a web browser.



During playback the MP-2 provides seamless switching between files, and seamless looping of files, making it especially useful when a slick presentation is required!



An OLED display and various push buttons and indicators provide for local setup and testing.



The MP-2 can be powered from 9 to 24v DC, and draws less than 500mA.

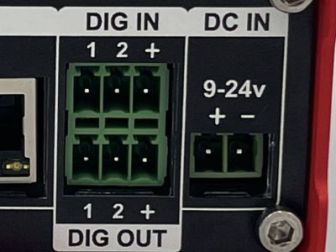

Digital I/O and power plug-in screw terminal connectors, to save time and prevent wiring errors if changing a module. Clamping terminals accept up to 16AWG conductors.

Indicators for power, play mode and SD card access.

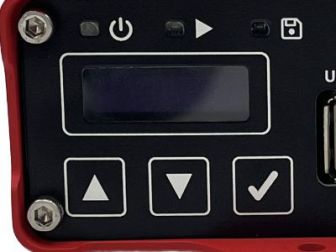

0.91" OLED display and navigation buttons, for local configuration and testing.

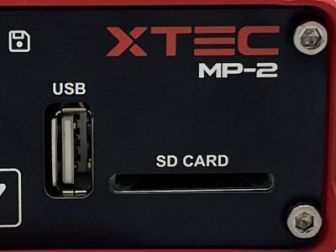

USB A socket for flash memory drive, to download files or make backups.



Full size SD card used for all media storage. Configuration is also stored on this card, making it easy to create amd restore backups.

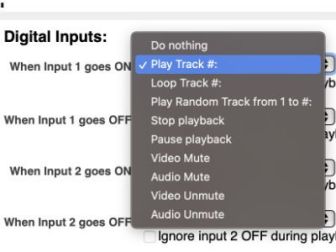

Use any web browser for configuration of network settings, digital in / out modes, auto-start, audio settings etc
